120 m/min
LQ-2CH

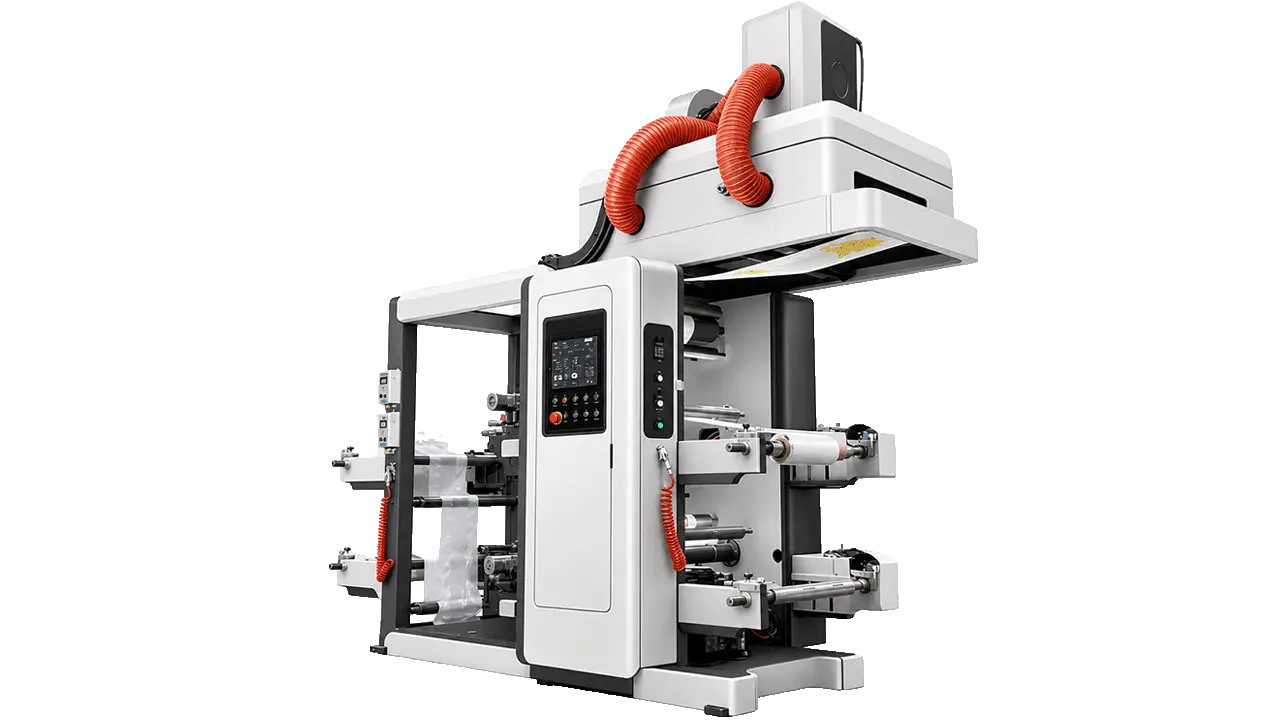

LQ-2CH Series 2-Color Flexo High Speed Printing Machine
80–100 m/min
Speed
The LQ-2CH Series is a 2-color high-speed flexographic printing machine built for continuous roll-to-roll production on plastic film, paper, woven, and non-woven substrates.
Available in three substrate widths — 600mm, 800mm, and 1000mm — the series delivers an actual printing speed of 80–100 m/min, making it one of the fastest entry points in the 2-color flexo segment.
The synchronous belt drive system replaces conventional chain drives, reducing noise and eliminating speed variation during startup and shutdown for tighter color-to-color registration. A hydraulic automatic unwind correction system tracks the web without operator intervention, while friction-type winding maintains consistent roll tension throughout the run.
The large integrated drying oven ensures reliable ink cure across all supported substrates, including kraft paper and non-woven fabric where water-based inks require more aggressive drying.
All three models share the same core mechanical architecture — substrate width is the sole differentiator, simplifying model selection and allowing operators familiar with one model to work across the series.
Confirmed output types for this machine configuration. Actual results depend on film specification and tooling selection.
Not sure if this machine covers your specific product? Send us your sample or drawing
All specifications are under standard operating conditions and may vary depending on film material, bag size and configuration.
| Model Number | LQ-2CH |
|---|---|
| Machine Weight | 5,000–6,000 kg |
| Print Colors | 2 Colors |
| Max Print Width | 960mm |
| Max Speed | 80–100 m/min |
| Substrates | PE Film · PP Film · Paper (Kraft / Coated) · Woven Bag · Non-Woven Fabric |
Specifications subject to change without notice. Contact LayerQuestar for the latest confirmed datasheet for this model.
Common questions about the LQ-2CH. For configuration-specific questions, contact our engineering team directly.
The actual recommended printing speed is 80–100 m/min. The mechanical rated speed is 120 m/min; running at 80–100 m/min ensures consistent color registration and print quality under production conditions.
The LQ-2CH Series supports PE film, PP film, paper (including kraft and coated), woven PP bags, and non-woven fabric across all three models.
The machine accepts flexographic printing plates from 1.14mm to 3.94mm thick, covering standard photopolymer plates used for both fine-detail and solid-coverage bag printing.
The three models differ only in maximum substrate width: 600mm, 800mm, and 1000mm respectively. Speed, material compatibility, plate range, and all core mechanical features are identical across the series.
No. The hydraulic automatic unwinding belt correction system continuously tracks and adjusts the web path without operator intervention, reducing labor requirements and substrate waste.
Synchronous belt drive eliminates the speed fluctuation inherent in chain-driven systems, resulting in lower noise and more accurate color-to-color registration — particularly important for 2-color logo printing where even minor speed variation causes visible misregistration.
At 80–100 m/min with a 400mm bag repeat length, the machine produces approximately 12,000–15,000 impressions per hour under continuous operation. Output varies by bag size and substrate type.
Yes. The friction-type winding system and hydraulic tension control are well-suited to non-woven substrates, which are more porous and stretch-prone than plastic film. The large drying oven also supports the higher ink absorption rate of non-woven materials.
All three models share a 6.8m machine length and 2.9m height. The LQ-2CH-600 is 1.8m wide; the LQ-2CH-800 and LQ-2CH-1000 are both 2.0m wide.
