LQ-2C

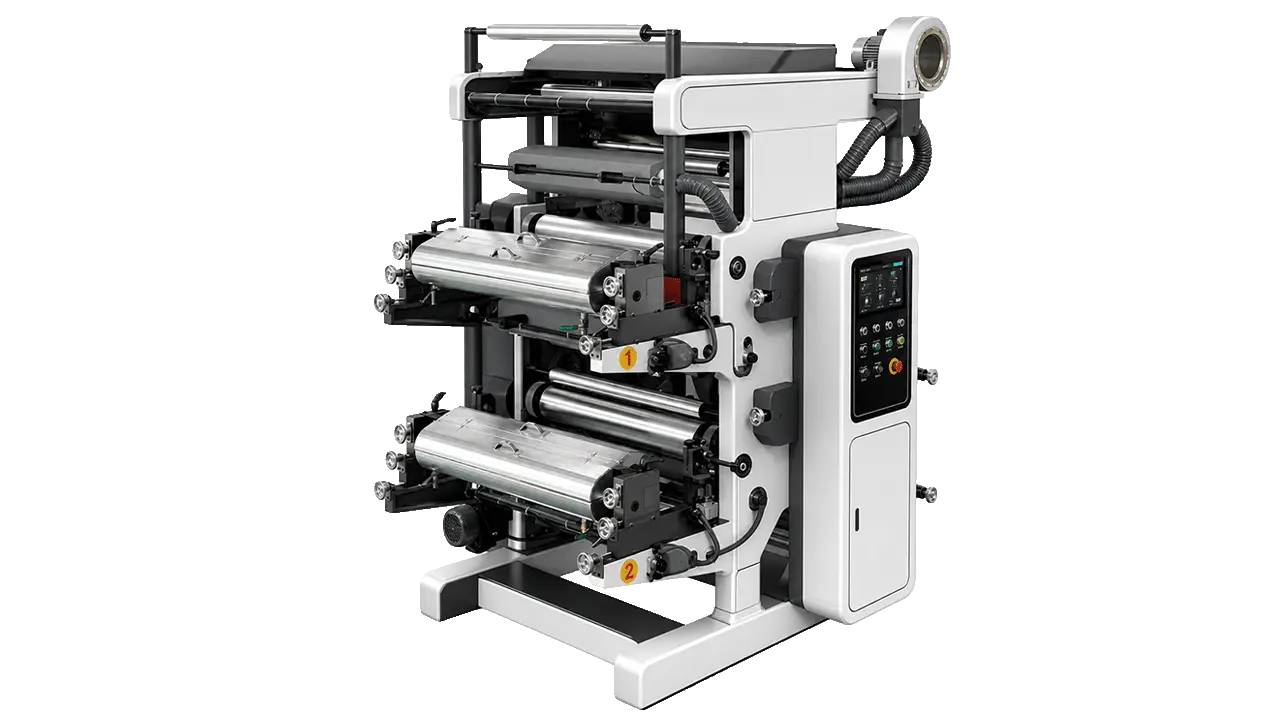

LQ-2C Series 2-Color Flexo Printing Machine
5–50 m/min
Speed
The LQ-2C Series is a 2-color flexographic printing machine designed for continuous roll-to-roll printing on flexible plastic films and paper substrates.
Available in three substrate widths — 600mm, 800mm, and 1000mm — the series covers a broad range of bag printing applications from small-format T-shirt bags to wide supermarket carrier bags.
All models operate at 5–50 m/min and support an integrated single-pass workflow combining printing, laminating, and die-cutting. The uniform 2.38mm plate specification across all models allows operators to share plate stock between machines, simplifying consumable management.
Inks are temperature-resistant, light-resistant, and friction-resistant, delivering high color saturation and registration accuracy on both film and paper.
Confirmed output types for this machine configuration. Actual results depend on film specification and tooling selection.
Not sure if this machine covers your specific product? Send us your sample or drawing
All specifications are under standard operating conditions and may vary depending on film material, bag size and configuration.
| Model Number | LQ-2C |
|---|---|
| Print Colors | 2 Colors |
| Max Print Width | 1000mm |
| Max Speed | 5–50 m/min |
| Substrates | BOPP, PET, PE, PVC, CPP, Glassine Paper, Standard Paper, Aluminum Foil |
Specifications subject to change without notice. Contact LayerQuestar for the latest confirmed datasheet for this model.
Common questions about the LQ-2C. For configuration-specific questions, contact our engineering team directly.
The LQ-2C Series is compatible with BOPP, PET, PE, PVC, CPP, aluminum foil, glassine paper, and standard paper rolls, covering both plastic film and paper bag production.
All three models operate at 5 to 50 meters per minute, allowing speed adjustment based on substrate type, ink coverage, and required registration accuracy.
The three models differ primarily in maximum substrate width: 600mm, 800mm, and 1000mm respectively. All share the same speed range (5–50 m/min) and plate thickness (2.38mm). The LQ-2C-800 also offers a shorter minimum print length of 180mm versus 200mm on the other two models.
Yes. The LQ-2C Series supports an integrated single-pass workflow that combines printing, laminating, and die-cutting, reducing handling steps and improving line efficiency.
All models require a total mounted plate thickness of 2.38mm, including the double-sided adhesive tape. This is a standard commercial flexo specification compatible with most photopolymer plate suppliers.
The LQ-2C Series is positioned after the blown film extruder and before the bag making machine. The workflow is: blown film extrusion → flexo printing → bag making.
The LQ-2C Series prints two colors per pass. For jobs requiring more than two colors, additional passes or a multi-color flexo model would be required.
All three models accept web rolls up to ⌀450mm in diameter.
Yes. All three models support paper substrates including uncoated kraft paper and coated white paper. Water-based flexo inks are recommended for paper applications to ensure adhesion and food-safety compliance.
Running at 30 m/min with 8-hour shifts at 80% efficiency in a dual-lane layout with a 400mm bag width, the LQ-2C-1000 can produce approximately 57,600 printed bag units per shift.
Send us your bag size, output target and film spec — LayerQuestar will respond within 4 business hours.
